Adaptive Gradient Boosting (AGB) Explained¶

Pega’s Adaptive Decision Manager (ADM) uses Adaptive Gradient Boosting (AGB) as its default predictive algorithm for Next-Best-Action recommendations. AGB is an online-learning variant of gradient boosted trees that continuously updates as new customer interactions arrive — no batch retraining required.

Pega documentation:

Adaptive Gradient boosting overview — what AGB is and why it replaces Naïve Bayes
The Gradient boosting technique — deep dive: ensemble construction, gain formula, ADWIN pruning
Downloading a Gradient boosting Adaptive Model — how to export the JSON from Prediction Studio
Interpreting Gradient boosting predictor importance — reading the feature importance analysis in Prediction Studio

This notebook explains:

How a single decision tree works — nodes, splits, and the gain formula.
How trees combine into an ensemble, how the model grows over time, and the cold-start / warm-start behaviour.
How a customer is scored — tracing the path through every tree.
Which predictors matter — feature importance from split gains.
How to read model health — key metrics and what they signal.
Model AUC and calibration — how the model is evaluated and what the AUC score means.

All examples use the pdstools sample AGB model.

📦 Optional dependencies

This article uses features from the pdstools adm extra, and requires pydot and graphviz for tree visualizations. Install with your favorite package manager, e.g. uv pip install "pdstools[adm]" pydot graphviz.

[2]:

import json
import polars as pl
from math import exp
from great_tables import GT
from pdstools import datasets

AGBModel = datasets.sample_trees()
# To use your own model, export the JSON from Prediction Studio and load it with:
# from pdstools.adm.trees import ADMTreesModel
# AGBModel = ADMTreesModel.from_file("path/to/model_export.json")
# See: https://docs.pega.com/bundle/platform/page/platform/pega-ai-tools/export-model-data-prediction-studio.html
print(f"Loaded model: {len(AGBModel.model)} trees, Pooled AUC={AGBModel.metrics['auc']:.4f}")
print(f"Training data: {AGBModel.metrics['response_positive_count']:,} positives, "
      f"{AGBModel.metrics['response_negative_count']:,} negatives")

Loaded model: 83 trees, Pooled AUC=0.8098
Training data: 56,182 positives, 10,631,119 negatives

Caveat: Pooled AUC—computed by mixing prediction scores and outcomes across all actions before drawing a single ROC curve—is systematically inflated by action base-rate differences and action-mix. It is therefore not a reliable measure of the discriminative power of any individual action model. For model-performance assessment, prefer the response-count weighted average of per-action AUC values: this is the AUC shown in Prediction Studio’s Adaptive Model Performance view. The standalone AGB JSON export used in this notebook does not contain the per-action AUCs needed to calculate that weighted value; it only exposes the exported pooled AUC scalar. See Pooled vs weighted-average AUC below.

0. Quick Sanity Check¶

Before diving into the detailed walkthrough below, it’s worth checking whether a model has actually learned anything meaningful. A handful of metrics values, taken together, tell you that at a glance:

Too few trees / mostly stumps — the model hasn’t had enough responses (or enough signal) to build real structure yet.
Pooled AUC ≈ 0.5 — no discriminative power; predictions are indistinguishable from random. (As elsewhere in this notebook, this is the pooled AUC exported with the model — not the weighted-average AUC across actions.)
Negatives ≤ positives — for a typical NBA response model this is inverted (responses are usually rare), and can indicate a sampling issue, a very high base rate, or a still-forming candidate model.
Very few active predictors — the model is only using a sliver of the available data to make decisions.

None of these are fatal on their own (a brand-new candidate model is supposed to look like this for a while), but several at once mean a model’s plots and metrics are not yet a reliable read on its real-world performance. ADMTreesModel.sanity_check() runs these checks for you:

[3]:

# Quick sanity check — flags a handful of "this model may not have learned
# anything useful yet" signals.
result = AGBModel.sanity_check()

print(f"Sanity check ({result['n_trees']} trees, Pooled AUC={result['pooled_auc']:.4f}, "
      f"{result['positive_count']:,} pos / {result['negative_count']:,} neg):\n")
if result["flags"]:
    print(f"⚠ {len(result['flags'])} red flag(s):")
    for msg in result["flags"]:
        print(f"  ⚠ {msg}")
    print("\nTreat the detailed sections below as illustrative of the mechanics,")
    print("not as a reliable read on this model's real-world performance yet.")
else:
    print("✓ No red flags from this quick check — proceed to the detailed walkthrough below.")

Sanity check (83 trees, Pooled AUC=0.8098, 56,182 pos / 10,631,119 neg):

✓ No red flags from this quick check — proceed to the detailed walkthrough below.

1. The Building Block: A Single Decision Tree¶

AGB is an ensemble of binary decision trees. Each tree is a directed graph where internal nodes split the population by a predictor threshold and leaf nodes hold a score (a real number in log-odds space).

The model JSON stores each tree as a nested dict. Here is the root node of the first tree:

[4]:

# Show the root node of tree 0 — the first split the model makes
root = AGBModel.model[0]
print(json.dumps(
    {k: v for k, v in root.items() if k not in ("left", "right")},
    indent=2,
))

{
  "score": -0.19775,
  "gain": 1597.41854,
  "sampleCount": 15052537,
  "split": "pyTreatment in { Action_01 }"
}

Each node contains:

Field	Meaning
`split`	The branching condition (`predictor op threshold`).
`gain`	How much this split reduces prediction error (see formula below).
`score`	The log-odds leaf score assigned to customers reaching this node.
`sampleCount`	Number of training responses routed through this node.
`left` / `right`	Child sub-trees (condition true → left, false → right).

The Split Gain Formula¶

AGB uses the XGBoost-style gradient-based split gain. For a candidate split that partitions the training responses into left (\(L\)) and right (\(R\)) groups:

\[\text{Gain} = \frac{1}{2}\left[ \frac{G_L^2}{H_L + \lambda} + \frac{G_R^2}{H_R + \lambda} - \frac{(G_L + G_R)^2}{H_L + H_R + \lambda} \right] - \gamma\]

Where:

\(G = \sum g_i\) with \(g_i = p_i - y_i\) — the prediction error (residual) of the current model for response \(i\).
\(H = \sum h_i\) with \(h_i = p_i(1 - p_i)\) — the Hessian (curvature).
\(\lambda\) — L2 regularisation on leaf scores.
\(\gamma\) — the complexity threshold: a split is only created when Gain \(> 0\) after subtracting \(\gamma\). This prevents over-splitting.

A split is only added to the tree if this gain is positive. High gain at the root means the split strongly separates positives from negatives.

ADWIN — the adaptation mechanism: Each node continuously monitors its prediction error using an Adaptive Sliding Window (ADWIN). When the error rises — signalling concept drift — the window shrinks and the effective gain falls. Branches whose gain drops below \(\gamma\) are pruned, allowing the model to forget stale patterns and grow fresh splits.

[5]:

# Predictors used by this model, by type
print(f"Total predictors: {len(AGBModel.predictors)}")
for ptype in ["symbolic", "numeric"]:
    names = [k for k, v in AGBModel.predictors.items() if v == ptype]
    print(f"  {ptype}: {len(names)} — e.g. {names[:3]}")

Total predictors: 194
  symbolic: 28 — e.g. ['pyTreatment', 'pyName', 'pyGroup']
  numeric: 166 — e.g. ['Customer.Attr01', 'IH.Mobile.Inbound.Clicked.pxLastOutcomeTime.DaysSince', 'IH.Mobile.Inbound.Rejected.pyHistoricalOutcomeCount']

[6]:

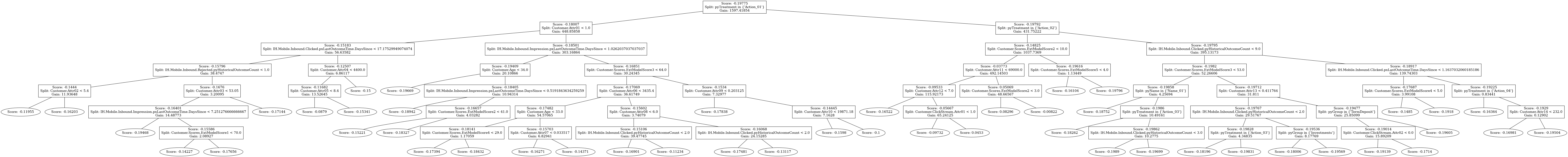

# Visualise tree 0 (requires pydot + graphviz)
AGBModel.plot.tree(0)

../_images/articles_AGBExplained_11_0.png

[6]:

<pydot.core.Dot at 0x7f98e2b47dd0>

2. The Ensemble: How Trees Build on Each Other¶

AGB is an additive model. Each new tree is trained on the residuals of all previous trees — it corrects whatever the ensemble got wrong so far.

The Scoring Formula¶

For a customer \(x\), the raw log-odds score is the sum of all leaf scores:

\[s = \sum_{k=1}^{K} \text{score}_k(x)\]

where \(\text{score}_k(x)\) is the leaf score of tree \(k\) for input \(x\).

The propensity (predicted probability of a positive outcome) is:

\[p = \sigma(s) = \frac{1}{1 + e^{-s}}\]

The leaf scores stored in the model JSON already incorporate the learning rate (\(\eta\)) applied during training — there is no separate \(\eta\) factor at scoring time.

Cold Start and Warm Start¶

Cold start: A new model starts with zero trees, so \(s = 0\) and the initial propensity is exactly \(\sigma(0) = 0.5\):

[7]:

from math import exp

# Cold-start propensity: no trees → score sum is 0
cold_start_propensity = 1 / (1 + exp(0))
print(f"Cold-start propensity: {cold_start_propensity}")  # exactly 0.5

Cold-start propensity: 0.5

Warm start: When a new treatment or action is introduced with similar attributes to an existing one, the model immediately benefits from predictors it has already learned. The new treatment reuses splits built for similar treatments, giving it an advantage over a blank-slate model.

Per-Tree Statistics¶

The table below summarises each tree. Early trees capture the strongest signals (high gain, large root score magnitude). Later trees make finer corrections.

[8]:

# Per-tree summary — drop the raw gains list for display
(
    GT(
        AGBModel.tree_stats
        .select("treeID", "score", "depth", "nsplits", "meangains")
        .rename({"treeID": "Tree", "score": "Root score", "depth": "Depth",
                 "nsplits": "Splits", "meangains": "Mean gain"})
        .head(10)
    )
    .tab_header(title="First 10 AGBModel — Summary")
    .fmt_number(columns=["Root score", "Mean gain"], decimals=4)
)

[8]:

Tree	Root score	Depth	Splits	Mean gain
First 10 AGBModel — Summary
0	−0.1978	7	46	123.2251
1	−0.1798	7	76	69.8476
2	−0.1663	7	65	66.4289
3	−0.1557	7	49	59.6910
4	−0.1472	7	76	34.5377
5	−0.1402	7	58	62.0967
6	−0.1345	7	54	68.5465
7	−0.1297	7	51	66.8250
8	−0.1256	7	66	59.6349
9	−0.1218	7	73	42.7853

[9]:

# Gain contribution per tree — early trees dominate
AGBModel.plot.gain_per_tree()

Interpreting this chart: A healthy ensemble shows a steep decline from left to right — the first 10–20 trees capture the bulk of the gain and later trees make progressively smaller corrections. A flat or rising tail suggests the model is still actively learning or that concept drift is continuously introducing new signal.

[10]:

# Cumulative gain share — S-curve showing how quickly the ensemble saturates
AGBModel.plot.cumulative_gain_share()

Interpreting this chart: The dashed line marks where 50% of total gain has accumulated. Good: this crossover should fall well before the midpoint of the tree count — in this model around tree 38 out of 83 — confirming that a small core of early trees does most of the work and later trees add diminishing corrections. A late crossover (past the halfway point) indicates an unusually flat gain distribution.

Training Stream¶

Because AGB trains online, we can reconstruct the timeline of tree additions from the sampleCount stored in each tree’s root node. A new tree is added after the ensemble has processed enough new responses to detect an improvement opportunity.

[11]:

# Total responses seen when each tree was added
AGBModel.plot.training_stream_timeline()

Interpreting this chart: Each point is a tree; the y-axis shows the total responses seen at the moment that tree was added. Good: a gently declining curve — the first tree was trained on the most data, and each subsequent tree refines a gradually changing stream. Steep steps indicate a burst of new data that triggered a new tree; a very flat curve suggests data was arriving slowly during that period.

[12]:

# Response volume between consecutive tree additions
# Spikes indicate bursts of activity; long gaps indicate slow learning periods
AGBModel.plot.inter_tree_gaps()

Interpreting this chart: Each bar is the change in root sampleCount from the previous tree. Most values are negative (the ADWIN window shrinks between tree additions as old responses age out). Good: gaps cluster near zero with occasional small negative or positive spikes. Large positive spikes mark a flood of new training data that triggered a new tree; large negative spikes indicate significant pruning of stale observations.

[13]:

# Gain decay — how much each tree contributes relative to its age
# x-axis: responses seen since that tree was added
AGBModel.plot.gain_decay_dual_lens()

Interpreting this chart: The steelblue trace shows gain by tree-index order; the orange dotted trace replots the same gain against training age (responses seen since that tree was added). Good: gain should be highest for the youngest trees (low training age, right side of the orange trace) and decay as trees age, confirming the model continuously renews itself. If the two traces look nearly identical in shape, the training rate has been roughly constant.

3. Scoring a Customer¶

To score a customer, the model traverses every tree from root to leaf, collecting the leaf score for each tree, then applies the sigmoid.

Let’s trace a concrete customer through the model.

[14]:

# Build a concrete customer profile.
# For each predictor we pick the first threshold value seen in the model's splits
# (giving a real, self-consistent set of inputs), then override a few key fields.
x = {
    pred: (
        float(next(iter(AGBModel.all_values_per_split[pred])))
        if ptype == "numeric" and pred in AGBModel.all_values_per_split
        else next(iter(AGBModel.all_values_per_split.get(pred, {"Unknown"})))
    )
    for pred, ptype in AGBModel.predictors.items()
}
# Fix the treatment so tree 0 takes its left (positive) branch
x["pyTreatment"] = "Action_01"

# Show just the key context-key predictors
print("Key predictor values for this customer:")
for pred in ["pyTreatment", "pyName", "pyGroup"]:
    print(f"  {pred} = {x[pred]!r}")

Key predictor values for this customer:
  pyTreatment = 'Action_01'
  pyName = 'Name_56'
  pyGroup = 'Overdraft'

[15]:

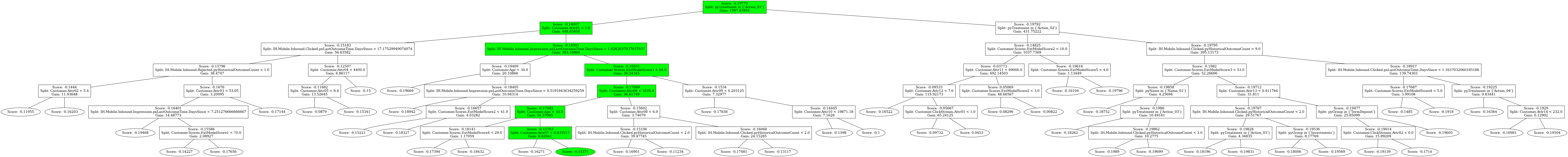

# Highlight the path taken through tree 0 (green nodes = visited)
AGBModel.plot.tree(0, highlighted=x)

../_images/articles_AGBExplained_29_0.png

[15]:

<pydot.core.Dot at 0x7f98e0611d50>

[16]:

# Per-tree leaf scores for this customer
visited = AGBModel.get_all_visited_nodes(x)
(
    GT(
        visited.select("treeID", "score")
        .rename({"treeID": "Tree", "score": "Leaf score"})
        .head(10)
    )
    .tab_header(title="First 10 Leaf Scores for Customer x")
    .fmt_number(columns=["Leaf score"], decimals=6)
)

[16]:

Tree	Leaf score
First 10 Leaf Scores for Customer x
0	−0.143710
1	−0.142290
2	−0.161190
3	−0.116570
4	−0.141790
5	−0.132290
6	−0.135230
7	−0.129470
8	−0.107130
9	−0.122460

[17]:

# Manual verification: sum all leaf scores, apply sigmoid
raw_score = visited.get_column("score").sum()
propensity_manual = 1 / (1 + exp(-raw_score))
propensity_library = AGBModel.score(x)

print(f"Sum of leaf scores: {raw_score:.6f}")
print(f"Propensity (manual σ(s)): {propensity_manual:.6f}")
print(f"Propensity (AGBModel.score): {propensity_library:.6f}")
print(f"Match: {abs(propensity_manual - propensity_library) < 1e-10}")

Sum of leaf scores: -3.810110
Propensity (manual σ(s)): 0.021666
Propensity (AGBModel.score): 0.021666
Match: True

[18]:

# Running propensity as each tree is added — shows convergence
AGBModel.plot.contribution_per_tree(x)

Interpreting this chart: Each bar is the incremental propensity change added by one tree for this specific customer. Good: the running total (visible in the cumulative trace) converges quickly — typically after 20–30 trees — and subsequent trees make only small adjustments. A propensity that is still oscillating late in the ensemble indicates a borderline customer where the model is genuinely uncertain.

4. Feature Importance: Which Predictors Drive the Model?¶

A predictor’s importance is measured by its total split gain — the sum of gain values at every split node that uses that predictor, across all trees.

Note on Prediction Studio: In the Prediction Studio UI, feature importance is shown as a 0–100 score that sums to 100 across all active predictors. The plots below use raw total gain (absolute scale), which is more useful for analysis but differs from the normalized UI value. Prediction Studio also offers treatment-level feature importance, showing which predictors matter most for each individual treatment.

Predictors are grouped into ADM-style PredictorCategory values that indicate the data source. The base categories and colors are the same defaults used by ADM plots:

Prefix or match	Predictor category	Source
(no dot)	Primary	Primary/context predictors such as `pyTreatment`, `pyGroup`, and `pyName`
`IH.*`	IH	Interaction History predictors
`Customer.*`	Customer	Customer attribute predictors
`Param.*`	Param	Parameter predictors
`<other>.*`	`<other>`	Any other dot-prefixed namespace
HC external-score keywords	External Model	Predictors whose names contain terms such as `Propensity`, `Score`, `Prediction`, or `ModelScore`

The next cell applies the same external-model keyword defaults used by the Health Check import screen, so score-like predictors are colored and labelled consistently with ADM Health Check outputs.

Predictors pre-processing¶

Symbolic predictors use a custom encoding that allows for more granular bins than the classic Naïve Bayes algorithm.
Numeric predictors are pre-processed using percentile streaming, which is robust against extreme outliers.

Both pre-processing steps contribute to AGB’s higher predictive power compared to the classic algorithm.

[19]:

# Top split patterns by total gain
top_splits = (
    AGBModel.grouped_gains_per_split
    .with_columns(pl.col("gains").list.sum().alias("total_gain"))
    .sort("total_gain", descending=True)
    .head(10)
)
(
    GT(top_splits.select("split", "predictor", "n", "mean", "total_gain"))
    .tab_header(title="Top 10 Split Patterns by Total Gain")
    .cols_label(split="Split condition", predictor="Predictor", n="# occurrences",
                mean="Mean gain", total_gain="Total gain")
    .fmt_number(columns=["mean", "total_gain"], decimals=1)
)

[19]:

Split condition	Predictor	# occurrences	Mean gain	Total gain
Top 10 Split Patterns by Total Gain
pyGroup in { Investments }	pyGroup	43	669.6	28,794.8
IH.Mobile.Inbound.Clicked.pyHistoricalOutcomeCount < 3.0	IH.Mobile.Inbound.Clicked.pyHistoricalOutcomeCount	24	546.2	13,109.6
IH.Mobile.Inbound.Clicked.pxLastOutcomeTime.DaysSince < 4.437152777777778E-4	IH.Mobile.Inbound.Clicked.pxLastOutcomeTime.DaysSince	5	1,923.4	9,617.2
pyTreatment in { Action_01 }	pyTreatment	16	601.0	9,616.4
pyGroup in { Savings, PersonalLoan, DailyBanking, CardPayments, Overdraft, TermDeposit, AncillaryServices, CreditCard }	pyGroup	21	455.0	9,554.1
IH.Mobile.Inbound.Clicked.pyHistoricalOutcomeCount < 2.0	IH.Mobile.Inbound.Clicked.pyHistoricalOutcomeCount	50	178.5	8,927.5
pyTreatment in { Action_05, Action_06, Action_07, Action_08, Action_09, Action_10, Action_11, Action_12, Action_13, Action_14, Action_15, Action_16, Action_17, Action_18, Action_19, Action_20, Action_21, Action_22, Action_23, Action_24, Action_25, Action_26, Action_27, Action_28, Action_29, Action_30, Action_31, Action_32, Action_33, Action_34, Action_35, Action_36, Action_37, Action_38, Action_39 }	pyTreatment	30	263.2	7,895.9
pyTreatment in { Action_05, Action_06, Action_07, Action_08, Action_09, Action_10, Action_11, Action_12, Action_13, Action_14, Action_15, Action_16, Action_17, Action_18, Action_19, Action_20, Action_21, Action_22 }	pyTreatment	43	148.6	6,391.3
IH.Mobile.Inbound.Clicked.pyHistoricalOutcomeCount < 4.0	IH.Mobile.Inbound.Clicked.pyHistoricalOutcomeCount	17	348.3	5,920.5
pyGroup in { TermDeposit }	pyGroup	34	162.8	5,535.1

[20]:

# Gain distribution per split condition for the top-5 predictors by total gain
top_preds = (
    AGBModel.grouped_gains_per_split
    .with_columns(pl.col("gains").list.sum().alias("total_gain"))
    .group_by("predictor")
    .agg(pl.col("total_gain").sum())
    .sort("total_gain", descending=True)
    .head(5)
    .get_column("predictor")
    .to_list()
)
AGBModel.plot.splits_per_variable(subset=set(top_preds));

[21]:

# Health Check uses these default keyword matches for external model scores.
# Keep this notebook aligned so AGB and ADM Health Check plots label score-like
# predictors consistently.
from pdstools.adm.trees._plots import _PREDICTOR_CATEGORY_VALUE

HEALTH_CHECK_EXTERNAL_MODEL_KEYWORDS = (
    "Propensity",
    "Score",
    "Class",
    "Classifier",
    "Classification",
    "Probability",
    "Prediction",
    "Predicted",
    "ModelScore",
)

external_model_score_expr = pl.any_horizontal(
    *[
        pl.col("predictor").cast(pl.Utf8).str.contains(keyword, literal=True)
        for keyword in HEALTH_CHECK_EXTERNAL_MODEL_KEYWORDS
    ]
)

AGBModel.plot.predictor_category_expr = (
    pl.when(external_model_score_expr)
    .then(pl.lit("External Model"))
    .otherwise(_PREDICTOR_CATEGORY_VALUE)
    .alias("PredictorCategory")
)

[22]:

# Overall feature importance ranked by total gain
AGBModel.plot.feature_importance_by_gain()

Interpreting this chart: Predictors are sorted by their total split gain across all trees. Good: model-context fields (pyGroup, pyIssue, pyTreatment) dominating the top is expected and healthy — AGB uses a single model for all actions, so action identity is a powerful discriminator. Below those, interaction-history (IH.*) and customer-attribute predictors should contribute meaningfully. A single non-context predictor taking >50% of the gain warrants investigation for potential data leakage.

[23]:

# Gain share by predictor category (IH.* vs Customer.* vs Primary / Param)
AGBModel.plot.gain_by_namespace()

Interpreting this chart: Each bar shows one predictor category’s share of total split gain. Good: several categories each claiming 15–40% of the gain, indicating the model draws on diverse signals. A single category above 70–80% may indicate that other data sources are unavailable or that those predictors are inactive.

[24]:

# Early learner vs late refiner — which predictors drive the first quarter of trees
# vs the last quarter?  Persistent predictors appear in both halves.
AGBModel.plot.early_vs_late_gain()

Interpreting this chart: Points above the diagonal are late refiners — their gain increases after many responses have arrived. Points below are early specialists — they drive the initial rapid learning. Good: model-context fields (pyGroup, pyIssue) typically land near the upper-left (early, dominant); behavioural predictors (IH.*) gradually strengthen over time and appear near or above the diagonal. Predictors clustered near the bottom-left contributed little in either phase and may be inactive.

[25]:

# Feature role map:
#   x-axis = mean split depth (shallow = high-level router, deep = specialist refiner)
#   y-axis = fraction of trees where the predictor appears (coverage)
#   size   = total gain
AGBModel.plot.feature_role_map()

Interpreting this chart: The x-axis is mean split depth — shallow predictors (near 0) act as high-level routers at the top of every tree; deeper predictors fire only for specific sub-populations. The y-axis shows the fraction of trees the predictor appears in (coverage); bubble size is total gain. Good: model-context fields such as pyGroup should be shallow and widely covered; individual IH or customer predictors should be deeper and more selective. A large bubble with shallow depth and broad coverage is a powerful universal signal. A predictor with high coverage but a tiny bubble is splitting often without much gain — a candidate for review.

Single-case attribution (SHAP): For individual propensity attribution — “why did this customer receive this propensity?” — Prediction Studio uses Shapley values (SHAP). The split-gain importance shown above is a model-level signal; SHAP provides the complementary per-customer view.

5. Model Health at a Glance¶

The metrics dictionary captures a comprehensive set of health indicators computed from the model structure. In production, many of these metrics are exposed through PEGA_ADM05 telemetry and visible in Prediction Studio model reports.

Key signals to watch:

Metric	Healthy range	Signal
`score_decay_ratio`	< 1	Converging model; > 1 may indicate instability
`top_predictor_gain_share`	< 0.5	High value = over-reliance on one predictor
`predictor_gain_entropy`	High	Low entropy = gain concentrated in few predictors
`number_of_stump_trees`	Low	High = heavy pruning, possible concept drift
`mean_gain_last_half` < `mean_gain_first_half`	—	Expected; model converging

[26]:

# Build a readable metrics table
from IPython.display import HTML

descriptions = AGBModel.metric_descriptions()
metrics_df = pl.DataFrame({
    "Metric": list(AGBModel.metrics.keys()),
    "Value": [
        f"{v:.4f}" if isinstance(v, float) else str(v)
        for v in AGBModel.metrics.values()
    ],
    "Description": [descriptions.get(k, "") for k in AGBModel.metrics.keys()],
})
table_html = (
    GT(metrics_df)
    .tab_header(title="Model Health Metrics")
    .cols_width({"Metric": "25%", "Value": "15%", "Description": "60%"})
    .as_raw_html()
)
HTML(f'<div style="max-height:420px;overflow-y:auto">{table_html}</div>')

[26]:

Metric	Value	Description
Model Health Metrics
auc	0.8098	Area Under the ROC Curve — overall model discrimination power.
success_rate	0.0053	Proportion of positive outcomes in the training data.
factory_update_time	2026-01-01T00:00:00.000Z	Timestamp of the last factory (re)build of this model.
response_positive_count	56182	Number of positive responses in training data.
response_negative_count	10631119	Number of negative responses in training data.
number_of_tree_nodes	11329	Total node count across all trees (splits + leaves).
tree_depth_max	8	Maximum depth of any single tree in the ensemble.
tree_depth_avg	7.7800	Average depth across all trees.
tree_depth_std	0.6600	Standard deviation of tree depths — uniformity of tree complexity.
number_of_trees	83	Total number of boosting rounds (trees) in the model.
number_of_stump_trees	0	Trees with no splits (single root node). Stumps contribute no learned signal.
avg_leaves_per_tree	68.7500	Average number of leaf nodes per tree — a proxy for tree complexity.
number_of_splits_on_ih_predictors	1231	Total splits on Interaction History (IH.*) predictors.
number_of_splits_on_context_key_predictors	485	Total splits on context-key predictors (py, Param., .Context.).
number_of_splits_on_other_predictors	3907	Total splits on customer/other predictors.
total_number_of_active_predictors	194	Predictors that appear in at least one split.
total_number_of_predictors	194	All predictors known to the model (active or not).
number_of_active_ih_predictors	15	Active IH predictors (appear in splits).
total_number_of_ih_predictors	15	All IH predictors in the model configuration.
number_of_active_context_key_predictors	5	Active context-key predictors.
number_of_active_symbolic_predictors	25	Active symbolic (categorical) predictors.
total_number_of_symbolic_predictors	28	All symbolic predictors in configuration.
number_of_active_numeric_predictors	166	Active numeric (continuous) predictors.
total_number_of_numeric_predictors	166	All numeric predictors in configuration.
total_gain	307905.2567	Sum of all split gains — total information gained by the ensemble.
mean_gain_per_split	54.7582	Average gain per split node (analogous to XGBoost gain importance).
median_gain_per_split	6.8670	Median gain — robust central tendency, less sensitive to outlier splits.
max_gain_per_split	3945.7724	Largest single split gain — identifies the most informative split.
gain_std	214.4065	Standard deviation of gains — high values indicate a few dominant splits.
number_of_leaves	5706	Total leaf nodes across all trees.
leaf_score_mean	-0.0533	Average leaf score (log-odds contribution). Near zero means balanced.
leaf_score_std	0.0532	Spread of leaf scores — wider spread means better discrimination.
leaf_score_min	-0.1989	Most negative leaf score.
leaf_score_max	0.4565	Most positive leaf score.
number_of_numeric_splits	4966	Splits using '<' (numeric/continuous thresholds).
number_of_symbolic_splits	637	Splits using 'in' or '==' (categorical membership).
symbolic_split_fraction	0.1137	Fraction of splits that are symbolic (0–1).
number_of_unique_splits	3331	Distinct split conditions across all trees.
number_of_unique_predictors_split_on	194	Number of distinct predictor variables used in splits.
split_reuse_ratio	1.6900	Total splits / unique splits — how often the same condition recurs across trees.
avg_symbolic_set_size	10.7400	Average number of categories in symbolic 'in { ... }' splits.
mean_abs_score_first_10	0.1499	Mean \|root score\| of the first 10 trees — initial correction magnitude.
mean_abs_score_last_10	0.0087	Mean \|root score\| of the last 10 trees — late correction magnitude.
score_decay_ratio	0.0579	Ratio last/first — values < 1 indicate convergence, >> 1 indicates instability.
mean_gain_first_half	53.9931	Average gain in the first half of trees.
mean_gain_last_half	55.7222	Average gain in the second half — lower values suggest convergence.
top_predictor_by_gain	pyGroup	Predictor with the highest total gain.
top_predictor_gain_share	0.1569	Fraction of total gain from the top predictor (0–1). High = dominance.
predictor_gain_entropy	0.5906	Normalised Shannon entropy of gain distribution (0–1). Low = concentrated.

[27]:

# Key "model not developing" diagnostics (SOP-ADM009)
# The split/tree ratio is computable from any model export.
# Saturation metrics require a datamart Modeldata blob — see note below.
m = AGBModel.metrics
total_splits = m["number_of_numeric_splits"] + m["number_of_symbolic_splits"]
ratio = total_splits / m["number_of_trees"]

print(f"Avg splits / tree:   {ratio:.1f}  ({'✓ OK' if ratio > 1 else '⚠ ALERT — model not developing'})")
print(f"Active predictors:   {m['total_number_of_active_predictors']}  "
      f"({'✓' if m['total_number_of_active_predictors'] >= 10 else '⚠ < 10 — may be too few to develop'})")
if "number_of_saturated_context_key_predictors" in m:
    print(f"Saturated context-key:     {m['number_of_saturated_context_key_predictors']}")
    print(f"Saturated symbolic:        {m['number_of_saturated_symbolic_predictors']}")
    print(f"Max context-key fill rate: {m['max_saturation_rate_on_context_key_predictors']:.0f} %")
else:
    print("Saturation metrics: not available for Prediction Studio exports.")
    print("Load via ADMDatamart.agb to see encoder fill rates.")

Avg splits / tree:   67.5  (✓ OK)
Active predictors:   194  (✓)
Saturation metrics: not available for Prediction Studio exports.
Load via ADMDatamart.agb to see encoder fill rates.

Interpreting this output: Avg splits/tree is the primary “not developing” signal — at or below 1 means most trees are stumps and the model is not learning structure from the data despite receiving responses. If saturation metrics are available, check them first: a predictor whose encoder table is full cannot contribute new splits regardless of data volume, which explains why gain flatlines even as response counts climb.

[28]:

# Splits by predictor type over the ensemble — symbolic vs numeric usage
AGBModel.plot.splits_per_variable_type()

Interpreting this chart: The Absolute view shows raw split counts per predictor type across trees; click Relative to compare proportional mix. A healthy model shows a stable percentage mix throughout the ensemble — a sudden shift late in training (e.g. symbolic splits spiking) can indicate a new data source becoming active or an imbalance in predictor coverage.

6. Model AUC and Calibration¶

After each new response, AGB applies a final calibration layer: the ensemble’s raw log-odds score \(s\) is passed through a PAVA-calibrated propensity mapping — the same Isotonic Regression (Pool Adjacent Violators) step used by the classic Naïve Bayes algorithm. The resulting propensity is the predicted probability exposed to the Next-Best-Action engine.

Validated AUC: test-then-train¶

The model’s AUC is a validated metric, not a training-set score. AGB uses test-then-train:

The incoming response is first scored by the current ensemble (producing a propensity via PAVA).
The predicted outcome is compared to the actual outcome, and the validated result contributes to the running AUC.
Then the model weights are updated.

This order ensures the AUC always reflects predictions made on data the model had not yet seen — it is a live, unbiased performance estimate.

Pooled vs weighted-average AUC¶

Pooled AUC mixes prediction scores and outcomes from multiple actions into one combined ROC calculation. This number is structurally inflated by cross-action base-rate separation, so a high pooled AUC can coexist with weak per-action models.

Weighted-average AUC is the response-count weighted average of per-action AUC values. This is the AUC displayed in Prediction Studio’s Adaptive Model Performance view, and it is the honest, actionable portfolio metric because it answers the operational question that matters in NBA: does each action model rank likely responders above likely non-responders within its own action?

The standalone AGB JSON export used in this notebook does not include the per-action AUC values and response counts needed to calculate weighted-average AUC. It only exposes the exported pooled AUC scalar. To inspect weighted-average AUC, use Prediction Studio’s Adaptive Model Performance view or an ADM/datamart source that contains per-action model performance rows.

In practice, report weighted-average AUC as the primary portfolio measure and treat pooled AUC only as a descriptive aggregate, not as evidence of model quality.

AGB vs Naïve Bayes: calibration observability¶

Aspect	Naïve Bayes	AGB
PAVA bins exported?	✅ Yes — visible in ADM datamart	❌ No — internal to engine
AUC derivable from bins?	✅ `auc_from_bincounts()`	❌ Only the pre-computed scalar
AUC is validated?	✅ test-then-train	✅ test-then-train

Note: PAVA bins are not exported for AGB models — only the pre-computed AUC scalar. For Naïve Bayes models, auc_from_bincounts() can re-derive AUC from the exported bins.
